Royal Thai Airforce airport hangar

Drainage of the Royal Thai Airforce Base

Don Mueang International Airport is located north of the centre of Bangkok. It is one of the oldest international airports in the world and today functions as a military and commercial airport. Don Muang Royal Thai Air Force Base, which is the main operating and command base of the Royal Thai Air Force (RTAF), is located here. Safe drainage is ensured by a channel system that can withstand the enormous loads imposed by military and civil aircraft.

Product Load Class
336 m of RECYFIX HICAP F F 900
5 pieces of Modular trash box F 900

Location

Bangkok, Thailand

Drainage solution for the hangars

Three large hangars for the Royal Thai Airforce, each with an area of 5,000 square metres, were to be drained with a modular trench system installed across the doors. The channels not only have to withstand the high wheel loads and dynamic surface forces generated by aircraft that regularly pass over the system, but also need to ensure that surface water is safely drained and does not flow inside the hangar building.

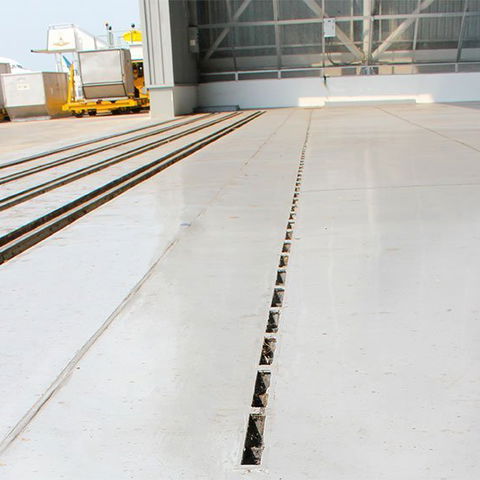

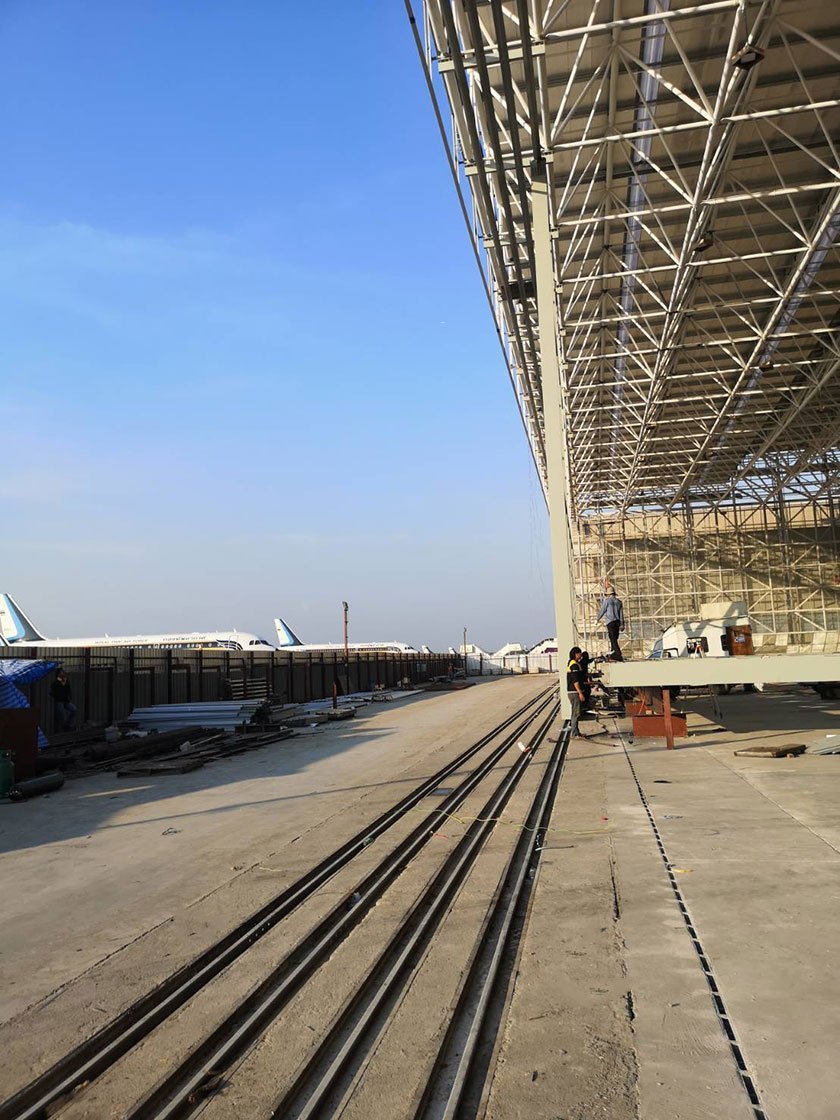

RECYFIX HICAP F channels are installed outside the doors of the Royal Thai Airforce hangars

Further requirements for the drainage system

Safe installation with no F.O.D. risk

Durable and corrosion resistant to fuels, oils, chemicals and other surface pollutants

Quick and easy installation and low maintenance during the entire life cycle

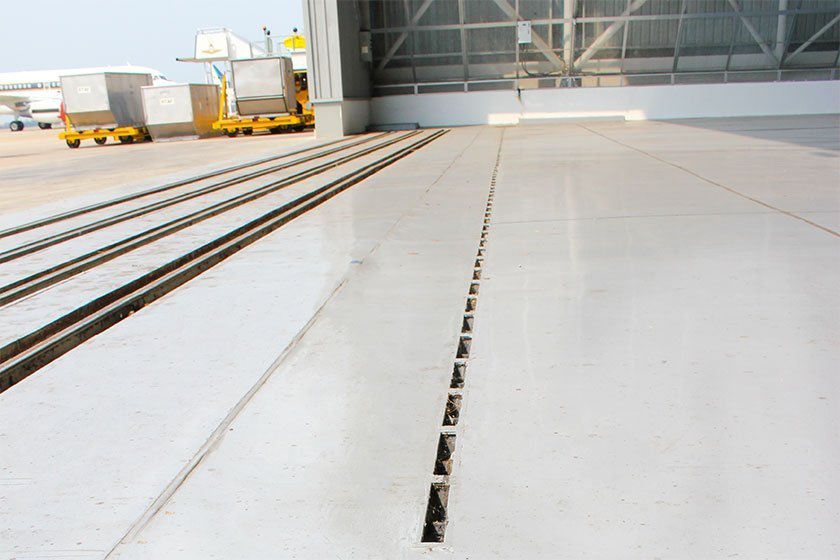

Effective airport drainage with a single slot inlet of the RECYFIX HICAP F

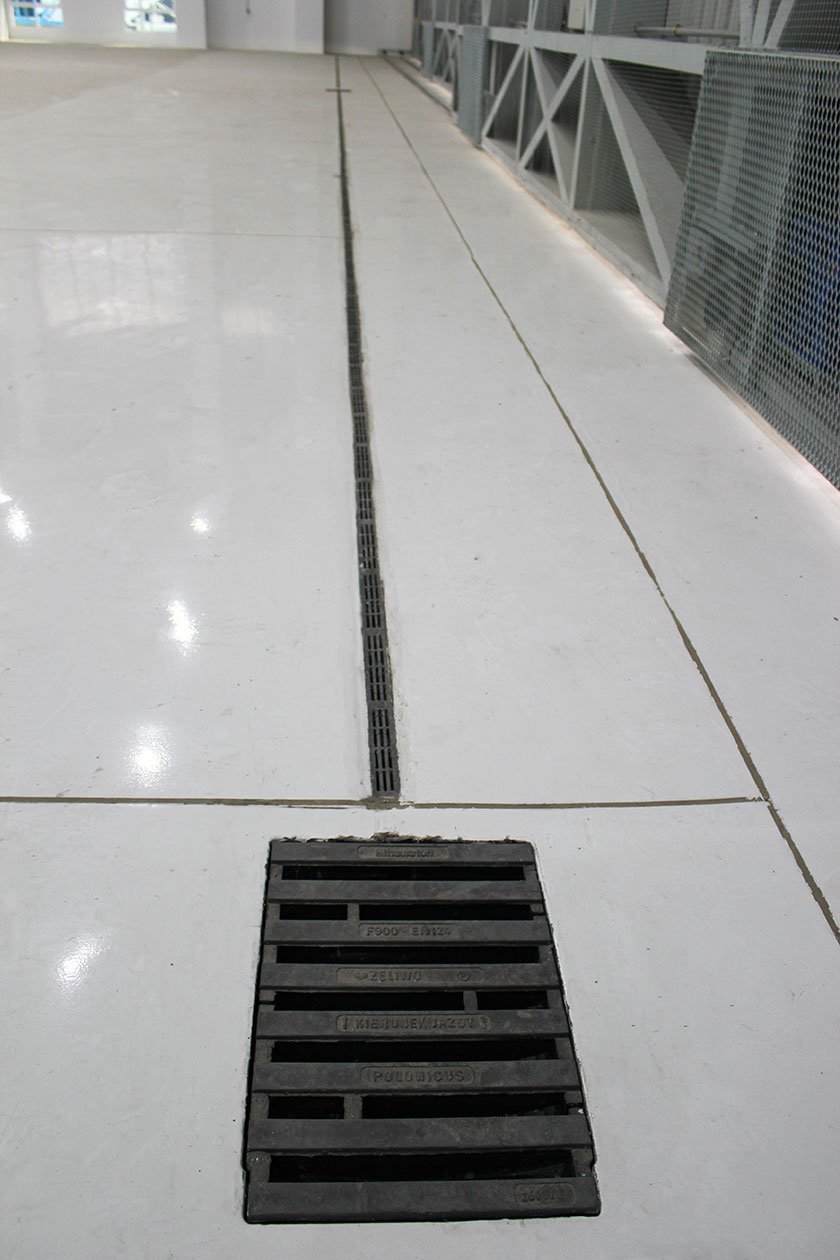

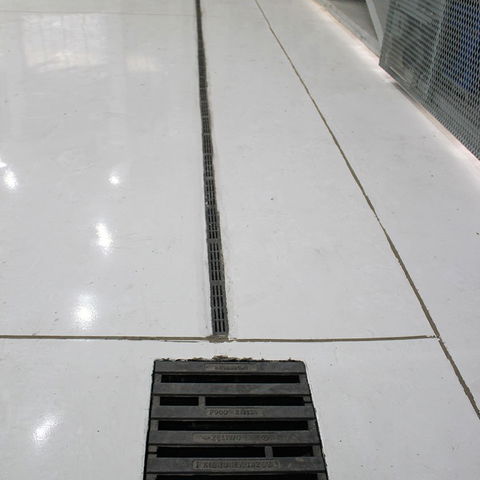

The trash boxes collect sludge before the water enters the canal system

RECYFIX HICAP F

For safe hangar drainage

RECYFIX HICAP F channel

By choosing this product, the Royal Thai Airforce benefits from the following advantages:

  • Safe and secure: tested to F 900 (up to approx. 180 tonnes total weight and 60 tons wheel load) to withstand high loads and forces from aircraft and operations vehicles

  • High hydraulic performance: drainage and water storage in one product

  • Strong and durable: high resistance to fuels, oils, chemicals and the corrosive environment found within a maintenance facility
